OEM 3TF Machine Tool 3TF46 80A Compressor Electrical Contactor Switch 20A-630A

Name: OEM 3TF Machine Tool 3TF46 80A Compressor Electrical Contactor Switch 20A630A
Brand: Rich or OEM
Price: 2 USD

China OEM 3TF Machine Tool 3TF46 80A Compressor Electrical Contactor Switch 20A-630A wholesale

Brand Name : Rich or OEM

Model Number : 3TF

Certification : CE/CB/CCC

Place of Origin : China

MOQ : 10 pcs

Price : $2-$100

Payment Terms : T/T, Western Union, MoneyGram, L/C, D/A, D/P

Supply Ability : 100000 pcs per month

Delivery Time : 3-20 days

Packaging Details : Standard Export Package or according to customs request

Type : GMC contactor

Number of Pole : 3

Phase : 3

Main Circuit Rating Current : 20A-630A

Coils voltage : AC230V240V380V400V415V440V Optional V

Material of contact kit : Silver

Color : Blue&Black Classics

Rated frequency : 50/60Hz

Electrical life : 250,000 times

Mechanical life : 10,000,000 times

Contact Now

High Quality OEM 3TF contactor for machine tool 3TF46 80A compressor contactor 20A-630A Electrical Contactor Switch

Application

3TF/3TB /CJX1 AC Contactors are suitable in electrical system with AC 50/60Hz, rated operational voltage up to 660V. In AC-3 usage, rated operational voltage up to 380V, rated operational current up to 630A to make or break remote motors or system. They form electromagnetic starters with suitable thermal overload or phase-failure. They are made according to IEC947, BS5424 & VDE0660.
The contactor is a straight motion mechanism having double-breaking contacts. The auxiliary contacts are arranged 2NO.2NC at most, It is employed the flexible locking connection between the contact support and core, three are no arcisolated panle in the Ie≤22A contactors. in the le≥32A contacotors. there are moulded arc-chute with arc-isolated panel. because all contacts are made of high nonfusibility and against corrosion silver alloy. All series products can be mounted by screws, le≤32A contactor also by installation rail.

Specification

Type	Rated thermal current (A)	Rated operation current (A)		(KW) Controllable power of motor				Type of auxiliary contact
		Rated operation current (A)		AC-3		AC-4
		380V	660V	380V	660V	380V	660V
3TF4011	20	9	7	4	5.5	1.4	2.4	NO NC 1NO+1NC 2NO+2NC
3TF41	20	12	8.5	5.5	7.5	1.9	3.3
3TF42	30	16	12.5	7.5	11	3.5	6
3TF43	30	22	16.5	10	15	4	6.6
3TF44	55	32	24	15	22	7.5	13
3TF45	55	38	24	18.5	22	9	15.5
3TF46	80	45	40	22	37	12	20.8
3TF47	80	63	60	30	55	14	24.3	2NC+2NO 4NC+4NO
3TF48	100	75	60	37	55	17	29.5
3TF49	100	85	80	45	75	21	36
3TF50	160	110	95	55	90	27	46.9
3TF51	160	140	120	75	110	35	60
3TF52	200	170	160	90	150	38	66
3TF53	210	205	165	110	160	50	86
3TF54	300	250	230	132	220	58	100
3TF55	300	300	260	160	250	66	114
3TF56	400	400	380	200	355	81	140
3TF68	630	630	600	335	560	160	278

OEM 3TF Machine Tool 3TF46 80A Compressor Electrical Contactor Switch 20A-630A

Packaging & Shipping

1. We will ship the items within 3-15 working days after the payment is reached.

2. All the goods will be packed in export carton or wooden case carefully. We will make sure all product is compete when it arrive. We guarantee that all the packaging is intact when it reaches its destination .

3. The package will be shipped by sea or by air, or by TNT, DHL, FedEx, UPS, EMS or your forwarder . Please inform us directly which method is your preferred way .

Our Advantages

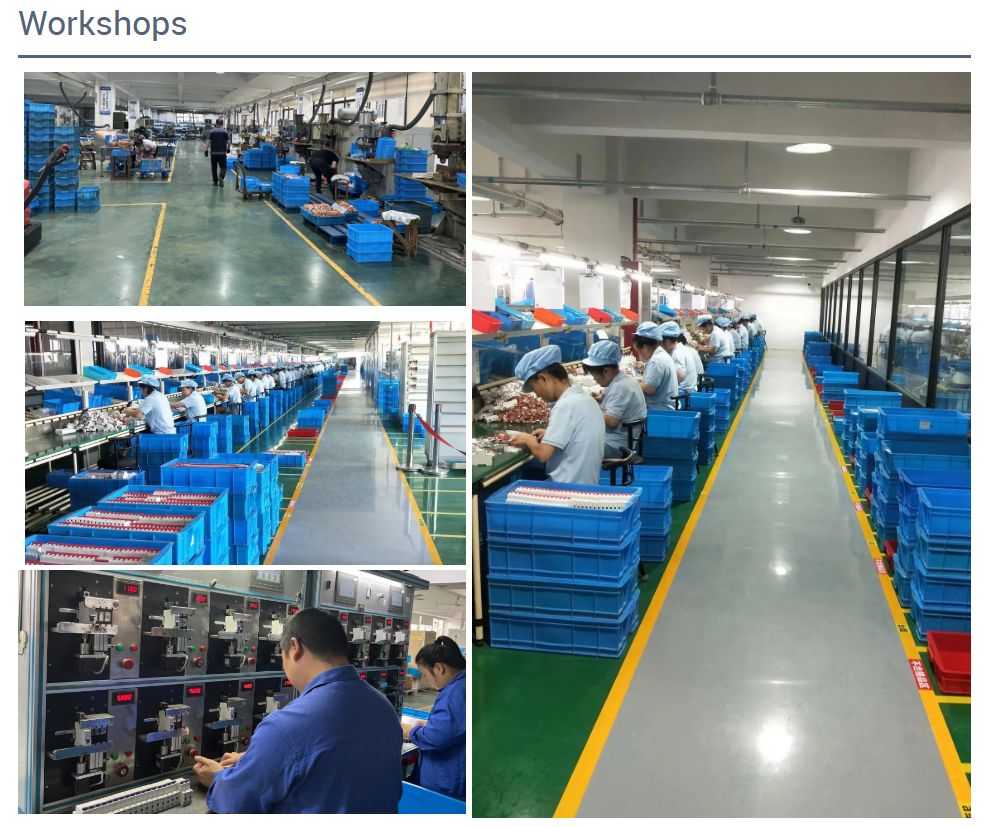

Located in the Chinese electrical appliances are yueqing liushi town, electric company set design,development, production, marketing, service marketing into an organic whole, for the Chinese and foreign customers with quality
products and considerate service.
