Portable Vibration Digital Clamp Meter Multimeter Innovative Sensor Design

Name: Portable Vibration Digital Clamp Meter Multimeter Innovative Sensor Design
Brand: Fluke
Price: 1 USD

China Portable Vibration Digital Clamp Meter Multimeter Innovative Sensor Design wholesale

Brand Name : Fluke

Model Number : FLUKE805 FLUKE802

Certification : CE

Place of Origin : USA

MOQ : 1 PCS

Price : consult for best discount

Payment Terms : T/T, , Western Union,Paypal,, MoneyGram,, L/C

Supply Ability : 500 Pcs/month

Delivery Time : 2-7 days

Packaging Details : Fluke original package

Usage : Vibration Testing Machine

Power : Electronic

Vibration limit : 50 g peak

A/D converter : 16-bit

Sampling rate : 20,000 Hz

Sensitivity : 100 mV g ± 10%

Contact Now

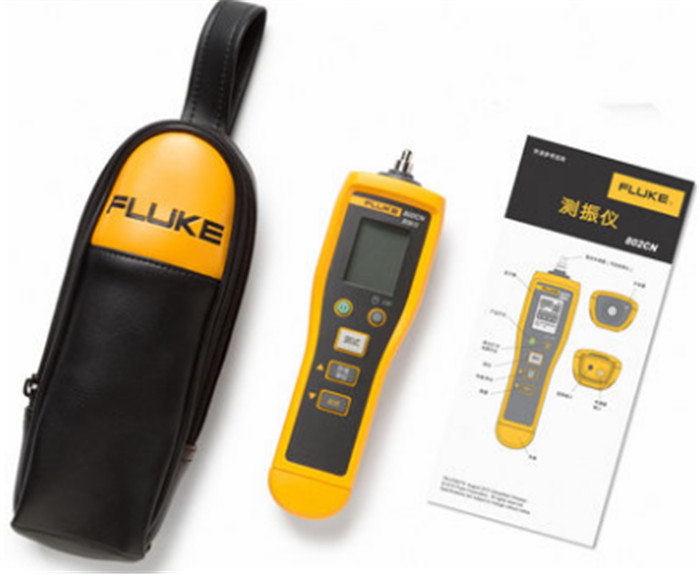

Fluke 802 805 Digital Clamp Meter Multimeter Fluke Portable Digital Vibration Meter

Product Description

The Fluke 805 Vibration Meter is reliable, repeatable and accurate way to check bearings and overall vibration. Make go or no-go maintenance decisions with confidence. The Fluke 805 Vibration Meter is the most reliable vibration screening device available

Features and Benefits

Innovative sensor design helps minimize measurement variations caused by device angle or contact pressure
Consistent data quality at both low and high frequency ranges
Four-level scale indicates severity of problems for overall vibration and bearing condition
Exportable data via USB
Trending in Microsoft® Excel using built-in templates
Overall vibration measurement (10 Hz to 1,000 Hz) for acceleration, velocity and displacement units of measurement for a wide variety of machines
Crest Factor+ provides reliable bearing assessment using direct sensor tip measurements between 4,000 Hz and 20,000 Hz
Colored lighting system (green, red) and on-screen comments indicate how much pressure needs to be applied to take measurements
Temperature measurement with Infrared Temperature Sensor increases diagnostic capabilities
On-board memory holds up to 3,500 measurements
Audio output for listening to bearing tones directly
External accelerometer support for hard to reach locations
Flashlight for viewing measurement locations in dark areas
Large screen with high resolution for easy navigation and viewing

Use the 805 to check the following machine categories:

Chillers (refrigeration)
Fans
Cooling tower drives
Centrifugal pumps
Positive displacement pumps
Air compressors
Blowers
Generic gearboxes (rolling element bearings)
Machine tools (motor, gearboxes, spindles, etc.)

Specification Of Fluke 805 Vibration Meter

Low frequency range (overall measurement)	10 Hz to 1,000 Hz
High frequency range (CF+ measurement)	4,000 Hz to 20,000 Hz
Severity levels	Good, Satisfactory, Unsatisfactory, Unacceptable
Vibration limit	50 g peak (100 g peak-peak)
A/D converter	16-bit
Signal to noise ratio	80 dB
Sampling rate Low frequency High frequency	20,000 Hz 80,000 Hz
Real time clock backup	Coin battery

Sensor
Sensitivity	100 mV g ± 10%
Measurement range	0.01 g to 50 g
Low frequency range (overall measurement)	10 Hz to 1,000 Hz
High frequency range	4,000 Hz to 20,000 Hz
Resolution	0.01 g
Accuracy	At 100 Hz ± 5% of measured value

Amplitude Units
Acceleration	g, m/sec²
Velocity	in/sec, mm/sec
Displacement	mils, mm

Infrared Thermometer (Temperature Measurement)
Range	-20 °C to 200 °C (-4 °F to 392 °F)
Accuracy	±2 °C (4 °F)
Focal length	Fixed, at ~3.8 cm (1.5")

External Sensor Note: Fluke supports but does not provide external sensors
Frequency range	10 Hz to 1,000 Hz
Bias voltage (to supply power)	20 V dc to 22 V dc
Bias current (to supply power)	Maximum 5 mA

Firmware
External interfaces	USB 2.0 (full speed) communication
Data capacity	Database on internal flash memory
Upgrade	Through USB
Memory	Up to 3,500 measurements

Radiated Emission
Electrostatic discharge: burst	Standard EN 61000-4-2
Electromagnetic interference	Standard EN 61000-4-3
RE	Standard CISPR 11, Class A

Environmental
Operating temperature	-20 °C to 50 °C (-4 °F to 122 °F)
Storage temperature	-30 °C to 80 °C (-22 °F to 176 °F)
Operating humidity	10% to 95% RH (non-condensing)
Operating/storage altitude	Sea level to 3,048 meters (10,000 feet)
IP rating	IP54
Vibration limit	500g peak
Drop test	1 meter

General Specifications
Battery type	AA (2)Lithium Iron Disulfide
Battery life	250 measurements
Size (L x W x H)	24.1 cm x 7.1 cm x 5.8 cm (9.5 in x 2.8 in x 2.3 in)
Weight	0.40 kg (0.89 lb)
Connectors	USB mini-B 7-pin, stereo audio output jack (3.5 mm Audio Plug), external sensor jack (SMB connector)
